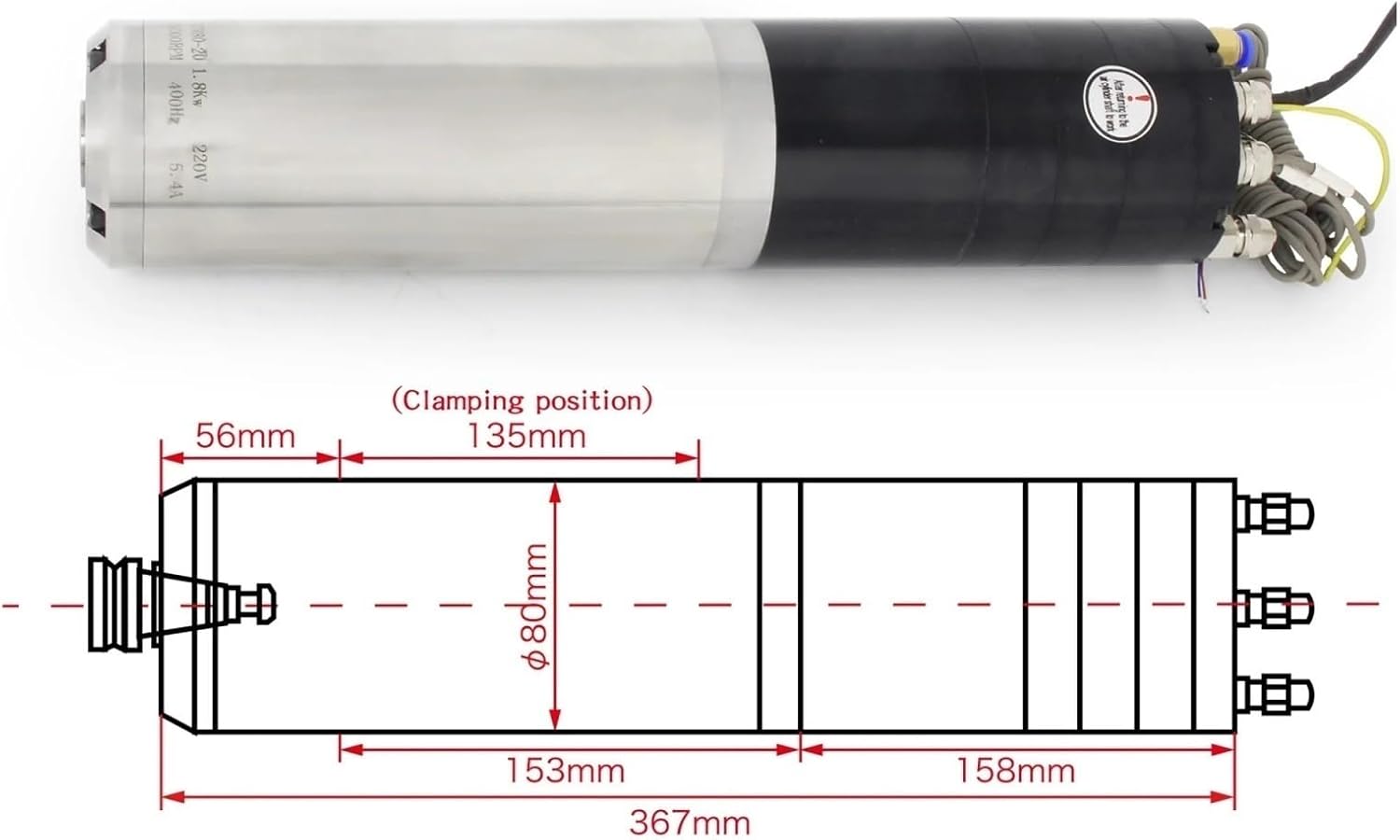

1.8KW 2.2KW ISO20 220V Water Cooling ATC Automatic Tool Change Spindle Motor, Metal Router Milling Kit(2.2KW 220V Kit)

Package include:1x 1.8KW / 2.2KW ATCwater cooled spindle motor 220V ISO21x 2.2KW Fuling Inverter 220v1. Product overview1) This spindle is built-in type spindle motor, built-in three asynchronous motors,by theinverter control.As the spindle has a compact structure,high power, big torque, small vibration,low noise characteristics,so it can achieve high speed,high powe cutting,high precision and highstability.2) The bearing of spindle use grease lubricated angular to contact bearings,can beachieved lifelong lubricating within the life cycle.3) The spindle use forced coolling mode to coolling motor,front and rear bearings.Coolantflow through the reasonable arrangement cycle watercourse of the spindle body,thus can takethe heat generated of the spindle rotation speed, to achieve thermal equilibrium,let spindletemperature within a certain constant value. External cooling device effect:maintaining aconstant temperature of the coolant.4) The spindle built-in PTC 140 temperature sensor(Technical parameters are visible inother sections of this specification),you can read it anytime if you need to protect the motortemperature.5) The tool clamping methods:this spindle built-in automatic tool change device,shank formis ISO20FitmentFor castings, aluminum, glass, etc., and other processingSpindle installation explanation1) Circulating Cooling DescriptionIt must ensure that the cooling water temperature of supply spindle is between 24-28deg. Usually setting the flow switch in return pipe of the cooling ,to ensure the supply of spindle cooling water. Cooling water requirements: we recommend using distilled water, while recommend Feinuokesi (Fenix) protective agent F1 (using the scale of 1: 200),coolant temperature is 26deg±2deg,inlet, outlet pipe temperature can't exceed 5 deg.It is allowed As long as others can ensure fuller spindle cooling.2) Air sealing controlIn order to prevent water or impurities enters internal of the spindle,spindle will have gas sealing device,the gas seal machine must be started start with the machine at the same time. And the need to go through multi-stage filtration.3) Compressed gas quality requirementsThe quality requirement of gas which is used in gas seals:<;0.01mg/m3<;5µ m<;7.5deg(0.7MPa)4) Running-in program instructionsOnly all issued no failures operational signals,at the same time,all safety devices have been installed and working properly,then allow start spindle.Note: Spindle which is not used for a long time must to be running slowly.First,start run spindle for half an hour as 25% of the maximum speed,then increase to 50% of the maximum speed,to run 15 minutes,finally, increase to maximum speed.It's need to check the temperature of the spindle during the whole process, spindle will get hot, but not hot hand, if the spindlebecomes hot, pls stopVariable Frequency Drive Inverter 2.2KW 3HP 220V 10ATech parameters:1) Input Voltage: 220V2) Output Voltage:0- 220V3) Input Frequency: 50/60Hz4) Output Frequency: 0-1000 Hz5) Input Phase: 3 phase6) Output Phase: 3 phase==========Drive : MotorMaximum Torque : 0.84 NmOperating Speed : 24000rpmModel Number : RTM80-20-24Z/2.2 220VCooling : Water cooledSize : 80x379mmPower : 2.2KwNose : ISO20Balance Level : G1.0Current : 5.4AVoltage : 220VBearing : 2x7006+1x7005

• Automatic tool change: Supports coordination with robotic arms or tool magazines for fast tool switching.
• High speed and accuary: Offers high rotational speeds (typically thousands to tens of thousands of RPM).
• Compact structure: Integrated motor and spindle design minimizes space usage.
• Effective cooling: Commonly uses water or air cooling to ensure stable high-speed use over time.
• Versatile interfaces: Compatible with various control device, making it easy to integrate into automated production lines.
